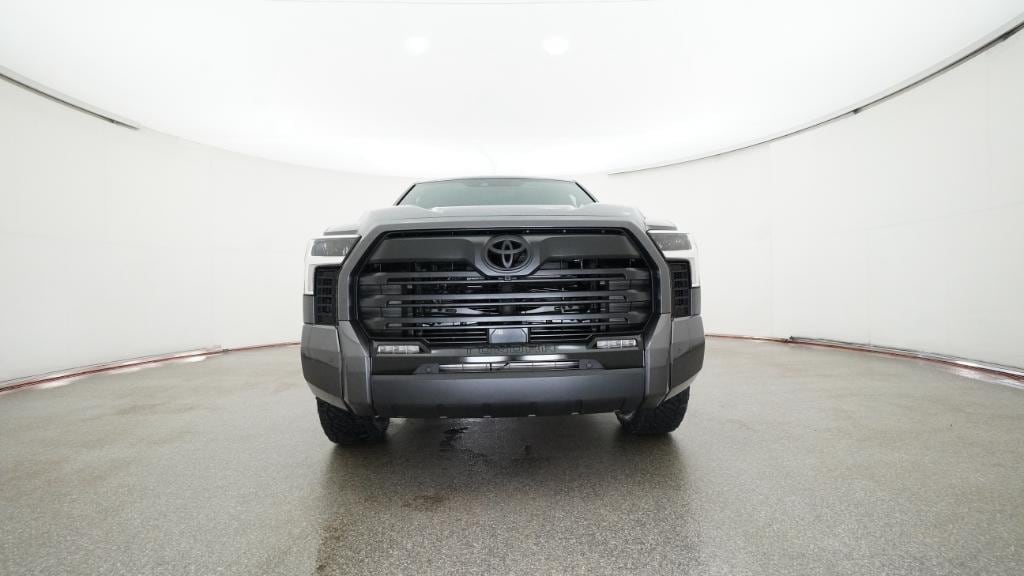

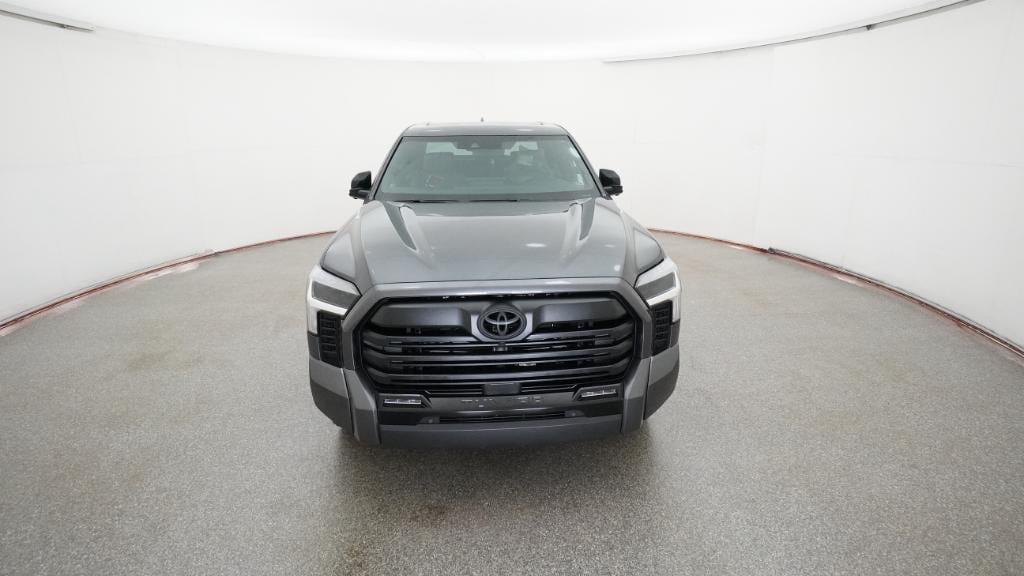

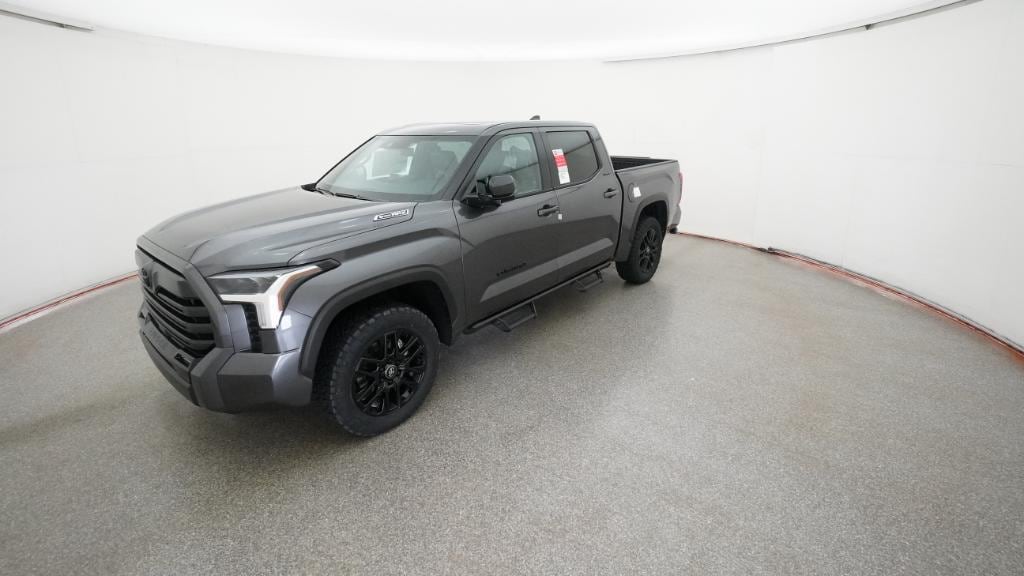

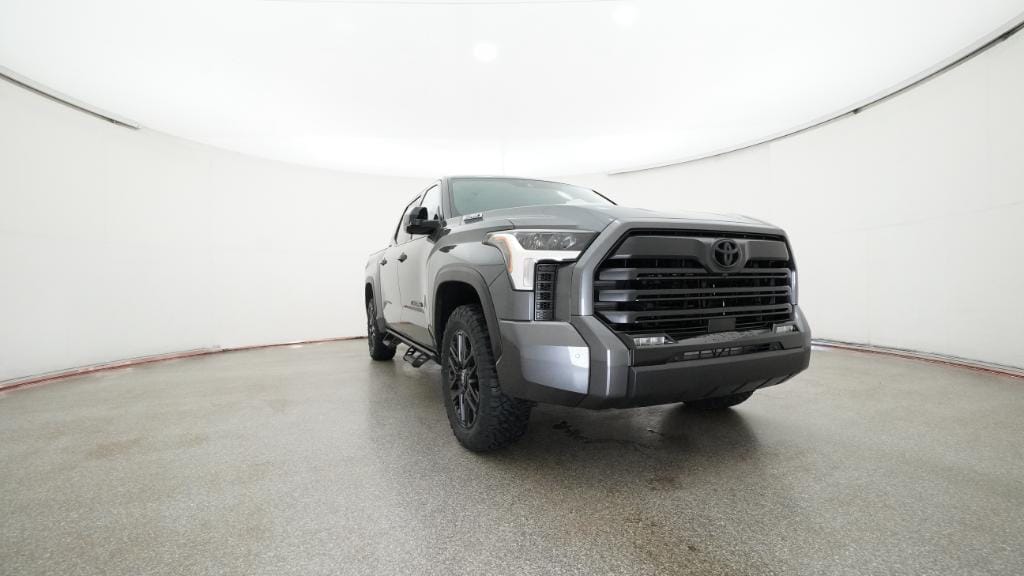

New 2025 ToyotaTundra i-FORCE MAX Limited i-FORCE MAX 4WD CrewMax
- Exterior Color
- Magnetic Gray Metallic
- Interior Color
- Boulder SofTex®-trimmed
- Transmission
- 10 speed automatic
- Drivetrain
- 4WD
- Bed Length
- 5.5ft
- VIN
- 5TFWC5DB0SX105979
- Stock Number
- 22255383
Detailed Specifications
- '4x4' tailgate badge
- 'TUNDRA' stamped easy lower and lift tailgate
- 'i-FORCE MAX' hood badge
- 20-in. gray-painted and machined-finish alloy wheels
- 5.5-ft. Short Bed
- Aluminum-reinforced composite bed construction
- Chrome 'TUNDRA' and 'LIMITED' door badges, door handles and window molding color-keyed mirror caps and tailgate spoiler gray-painted overfenders
- Front door handles with touch-sensor lock/unlock feature
- Gloss-black-painted A-pillar, except on Midnight Black Metallic and Blueprint
- Gray-painted horizontal-bar grille with satin chrome surround
- Heated power outside mirrors with turn signal and blind spot warning indicators, and power-folding and reverse tilt-down features auto anti-glare driver's-side mirror only
- LED Trailer Reverse Assist (TRA) light
- LED center high-mount stop light (CHMSL) with integrated cargo lights
- LED fog lights
- LED headlights with Daytime Running Lights (DRL), auto on/off feature, and manual leveling adjustment
- LED taillights
- Power tailgate-release switch, located in taillights, key fob and dash with knee-lift assit
- Washer-linked variable intermittent windshield wipers
- 12.3-in. digital meter with selectable gauge display screens and fuel economy, Driver Assist, vehicle/trip information, and warning messages
- 60/40 split, folding rear seat with center armrest and cup holders
- 9-speaker audio system
- Acoustic laminated windshield
- Backup camera with projected path
- Drive Mode Select (DMS) switch and dial
- Driver's-seat memory function
- Dual zone automatic climate control with air filtration and individual temperature settings for driver and front passenger
- Electronic locking fuel door
- Fixed center console with gated shift lever, driving controls, four cup holders, and center storage bin
- Front 12V auxiliary power outlet
- Front and rear LED maplights
- Front and rear assist grips
- Heated and ventilated front seats
- Heated front seats
- Illuminated center console storage bin and glove box
- Leather-wrapped manual tilt/telescopic steering wheel with phone, audio, display/infotainment, and Driver Assist controls
- Leather-wrapped shift knob
- Overhead console with rear window control, sunglasses storage and Safety Connect(R)
- Power vertical rear window with defogger and privacy glass
- Power windows with one-touch auto up/down and jam protection
- Rear-seat air vents
- Smart Key System with Push Button Start remote keyless entry with lock, unlock, panic, tailgate release and remote illuminated entry
- SofTex(R)-trimmed seats 8-way power-adjustable driver and front passenger seats with power-adjustable lumbar support
- Soft-touch instrument panel, center console and door surfaces
- Thin-bezel auto-dimming rearview mirror with HomeLink(R) universal transceiver
- Body/Frame: Active aero front spoiler
- Body/Frame: Active grille shutters
- Body/Frame: Fully boxed high-strength steel ladder frame
- Body/Frame: Hydraulic cab mounts
- Body/Frame: Ultra-high-strength steel cabin construction with aluminum hood and front door panels
- Brakes: Electric Parking Brake (EPB)
- Brakes: Electronically Controlled Braking (ECB) system with integrated regenerative braking
- Brakes: Power-assisted, ventilated 13.9-in. front disc brakes with opposed dual-piston brake calipers ventilated 13.6-in. rear disc brakes with single-piston calipers
- Drive Modes: Eco, Normal and Sport driving modes
- Drive Modes: TOW/HAUL driving modes
- Drivetrain: 4WDemand part-time 4-Wheel Drive with electronically controlled 2-speed transfer case (high/low range) and Automatic Limited-Slip Differential (Auto LSD)
- Engine: i-FORCE MAX 3.4L Twin-Turbo V6 Hybrid 437 hp @ 5200 rpm 583 lb.-ft. @ 2400 rpm
- Exhaust System: Stainless steel exhaust system
- Fuel System: D-4ST direct-injection and port-injection fuel system
- HV Battery: 288V sealed Nickel-Metal Hydride (Ni-MH) battery with 1.87 kWh capacity
- HV Electric Motor: Electric motor power: 48 hp (36 kW)
- HV Electric Motor: Electric motor torque: 184 lb.-ft. (250 N m)
- HV Electric Motor: Parallel hybrid system with permanent magnet synchronous motor/generator
- Ignition System: Conventional 12V starter
- Intake: Twin turbochargers with electric wastegate valve actuators and water-cooled intercooler
- Off-Road: Engine and body undercovers
- Steering: Electric Power Steering (EPS) power-assisted rack-and-pinion
- Suspension: Independent double-wishbone front suspension coil spring multi-link rear suspension
- Towing: Class-IV towing hitch receiver and wiring harness with 7-pin/4-pin connector
- Towing: Integrated Trailer Brake Controller (ITBC) with Multi-Information Display (MID) screen and trailer brake type, gain and manual trailer brake output controls
- Towing: Trailer-Sway Control (TSC)
- Transmission: 10-speed Electronically Controlled automatic Transmission with intelligence (ECT-i), sequential shift mode, and uphill/downhill shift logic
- Valvetrain: 24-valve DOHC aluminum cylinder heads with Dual Variable Valve Timing with intelligence (VVT-i) 3445 c.c. aluminum engine block 85.5 x 100 (mm.) bore x stroke 10.4:1 compression ratio
- Toyota Safety Sense 2.5 (TSS 2.5) Pre-Collision System with Pedestrian Detection (PCS w/PD), Full-Speed Range Dynamic Radar Cruise Control (DRCC), Lane Departure Alert with Steering Assist (LDA w/SA), Lane Tracing Assist (LTA), Automatic High Beams (AHB), Road Sign Assist (RSA)
- 3-point seatbelts for all seating positions driver-side Emergency Locking Retractor (ELR) and Automatic/Emergency Locking Retractor (ALR/ELR) on all passenger seatbelts
- Blind Spot Monitor (BSM) with Rear Cross-Traffic Alert (RCTA) and Trailer Merge Warning
- Child-protector rear door locks and power window lockout control
- Drive-Start Control (DSC)
- Driver and front passenger active headrests
- Eight total airbags, including driver and passenger side, knee and curtain airbags
- Front and Rear Parking Assist with Automatic Braking
- Hill Start Assist Control (HAC)
- LATCH (Lower Anchors and Tethers for CHildren) includes lower anchors on all outboard second-row rear seats
- Star Safety System includes Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD), Brake Assist (BA) and Smart Stop Technology(R) (SST)
- Tire Pressure Monitor System (TPMS)
Dealer Notes
3.4L V6, 20" x 8" Alloy Wheels, 3.31 Axle Ratio, 4-Wheel Disc Brakes, 9 Speakers, ABS brakes, Air Conditioning, Alloy wheels, AM/FM radio: SiriusXM, Apple CarPlay/Android Auto, Auto High-beam Headlights, Auto-dimming door mirrors, Auto-dimming Rear-View mirror, Automatic temperature control, Brake assist, Bumpers: body-color, Delay-off headlights, Driver door bin, Driver vanity mirror, Dual front impact airbags, Dual front side impact airbags, Electronic Stability Control, Emergency communication system: Safety Connect (10-year trial), Exterior Parking Camera Rear, Front anti-roll bar, Front Bucket Seats, Front Center Armrest, Front dual zone A/C, Front fog lights, Front reading lights, Front wheel independent suspension, Fully automatic headlights, Garage door transmitter: HomeLink, Heated & Ventilated Front Bucket Seats, Heated door mirrors, Heated front seats, Heated steering wheel, Illuminated entry, Knee airbag, Leather Shift Knob, Leather steering wheel, Low tire pressure warning, Memory seat, Navigation System, Occupant sensing airbag, Outside temperature display, Overhead airbag, Overhead console, Panic alarm, Passenger door bin, Passenger vanity mirror, Power door mirrors, Power driver seat, Power passenger seat, Power steering, Power windows, Radio data system, Radio: Audio Plus, Radio: Premium Audio w/JBL, Rear reading lights, Rear seat center armrest, Rear step bumper, Rear window defroster, Remote keyless entry, Security system, SofTex Seat Trim, Speed control, Speed-sensing steering, Split folding rear seat, Steering wheel mounted audio controls, Tachometer, Telescoping steering wheel, Tilt steering wheel, Traction control, Trip computer, Turn signal indicator mirrors, Variably intermittent wipers, Ventilated front seats, and Voltmeter. *Every Internet Price includes current applicable incentives. Some incentives may require financing through the manufacturer's finance company on approved credit. Some manufacturer incentives may not be combined with special APR. You may also qualify for additional manufacturer incentive programs (E.G., College graduate, owner loyalty, and military). See dealer for more details about these programs. Your additional costs are sales tax, tag and title fees for the state in which the vehicle will be registered, any dealer-installed options, and a $995 dealer processing fee (North Carolina). Prices are subject to change, and prior sales are excluded. While every reasonable effort is made to ensure the accuracy of this information, we are not responsible for any errors or omissions contained on these pages. Please verify any information in question with the dealer.
